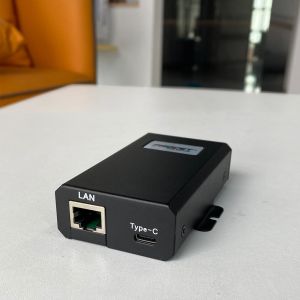

Procet Gigabit USB Type C PoE Splitter/Converter,IEEE802.3bt PoE++ Input to USBC Device 5V,9V,12V,15V,20V up to 60W,PT-PTC-BT
Product features:
1. PT-PTC-BT convert IEEE802.3bt PoE(Such as our model PT-PSE106GW)/PoE Switch or 60W or higher passive PoE++ Power to non-PoE Devices that accept USB-C power
2. USBC female output from 5V-20V based on the requirements of your Type-C device up to 60W with over voltage, over current, short circuit protection, ideal for computers, IPads, Macbook, Google Wifi and eero pro 6 WiFi access point and other Type-C devices
3. RJ45 socket delivers a signal to USBC device or other Network devices if needed, pass through data rates at 10/100/1000Mbps(Gigabit)
Products Description:
| Parameter | Description |
| Key Features | Type-C PoE Splitter(USB C PoE adapter)for Type-C devices |
| Part Number | PT-PTC-BT-#11 |
| Ports condition | PoE input port*1, RJ45 Data output port*1, USBC power output port*1 |
| Regulatory Compliance | IEEE802.3bt |
| Pass Through Data Rates | 10/100/1000 Mbps |
| Output | Output Power Voltage: 5V-20V |
| User Port Power total:50W Guaranteed |
| Input | DC Input Voltage:44-57Vdc |
| DC Input Current: 4A |
| AC Surge Protection | Line-Earth 1.2/50us (8/20us): 2KV |
| Line-Line 1.2/50us (8/20us): 1KV |
| Mechanical Characteristics | Case: Metal |
| Color: Black |
| IP Rated: IP40 |
| Connectors: Shielded RJ-45*1,Type-C Port*1 |
| Size: 91 X 51.11 X 24.11mm |
| Weight: 142g(0.31lb) |
| LED Indicator | PoE input indicator: Green |
| Type C output indicator: Yellow |
| Safety Approvals | FCC |

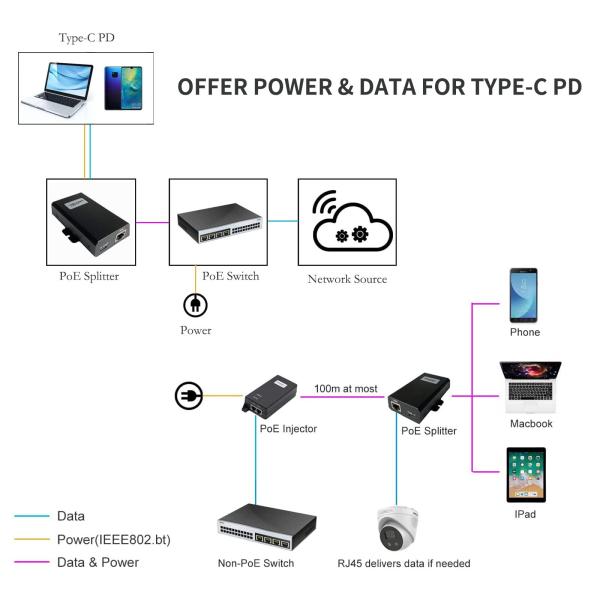

Schematic Diagram:
Company Introduction:
PROCET(Creative Lianjie Network Technology Co.,Ltd) estblished in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.
Certification:
Why Choose Us:
Operating since 2000
PROCET(Creative Lianjie Network Technology Co.,Ltd) estblished in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.
R&D Engineer Team
PROCET's engineers used PoE on 2002, and then mainly focus on PoE since 2003 the IEEE802.3AF standard comes out. We got our first paten on single-port PoE on the end of 2003.
Our PoE engineers have experience more than 15 years by now. They started to R&D the surge on PoE using, and now they have great contribution on our outdoor PoE series.
Production quality assurance
We keeped our stable production workers, four QC with at least 4 years experience to make sure the production.
We have aging testing, high-low temperature testing, surge testing, drop testing, swing testing before delivery.
We have CCC, CE,FCC,UL,TUV certification for our PoE.
OEM&ODM serives
We do OEM serives. Our MD engineer can help to design the LOGO, the label, the package, even the Housing.
We do ODM serives too, special on the high power PoE solutions, the Boost-Buck voltage PoE, AC/DC surge PoE.
Ordering:
Stock Quantity: 100PCS
Warehouse Location: Dongguan China
Sample Delivery Time: Within 24H
Bulk Stock Delivery Time: Within 48H
Shipping Way: DHL,UPS,FedEx,TNT,By SEA/AIR,Customer Nominated Forwarder
Packing Size: Qty: 20pcs/carton
Volume: 0.031 m³
Packing: Export Carton
Pallet size: 110 x 110cm
FAQ:
(1) Lead Time?
Order samples, we have in stock.
Bigger orders, 2-4 weeks after payment.
(2) How to buy?
Click the BLUE BUTTON "Inquire now" (in the middle of page), input your order info and send to us.
Your sales consultant will contact you with 24 hr.
(3) OEM/ODM Services?
YES. Tell us your demand, get the products you want.
For distributors, we can put your labels on it too.
